No Need Hand Touch V Fold Carton Box Drawing Facial Tissue Paper Making Machine Production Line

Name: No Need Hand Touch V Fold Carton Box Drawing Facial Tissue Paper Making Machine Production Line
Brand: XINYUN
Price: 125000 USD

China No Need Hand Touch V Fold Carton Box Drawing Facial Tissue Paper Making Machine Production Line wholesale

Brand Name : XINYUN

Model Number : XY-GU-A-A

Certification : CE

Place of Origin : CHINA

MOQ : 1 sets

Price : 125000 usd per production line

Payment Terms : T/T

Supply Ability : 500 sets per year

Delivery Time : 60-70 days

Packaging Details : Standard export wooden pallet

Voltage : 380V 50HZ

Condition : New

Product type : Carton box facial paper

Warranty : 1 Year

Processing type : carton box facial tissue paper production line

After-sales service provided : Engineers available to service machinery overseas,Video technical support

Raw material : Jumbo Roll Paper

Application : Tissue Paper Production Line

Output paper : facial tissue paper

Production capacity : 60-100 meters/min

Capacity : 2-3 tons per 8 hours

Type : Paper Making Machines

Contact Now

No Need Hand Touch V Fold Carton Box Drawing Facial Tissue Paper Making Machine Production Line

Technical performance characteristic:
This production line consists of :
1. XY-GU-20A Automatic transfer Facial Tissue Folding Machine,
2. XY-GU-281 Automatic Facial Tissue Cutting Machine

3. XY-GU-388 Automatic carton box facial tissue packing machine

4. XY-TN-269 Full-automatic box facial tissue heat shrink packing machine
From jumbo roll paper into the finished product, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It’s best choice for the producing carton box facial tissue.

No Need Hand Touch V Fold Carton Box Drawing Facial Tissue Paper Making Machine Production Line

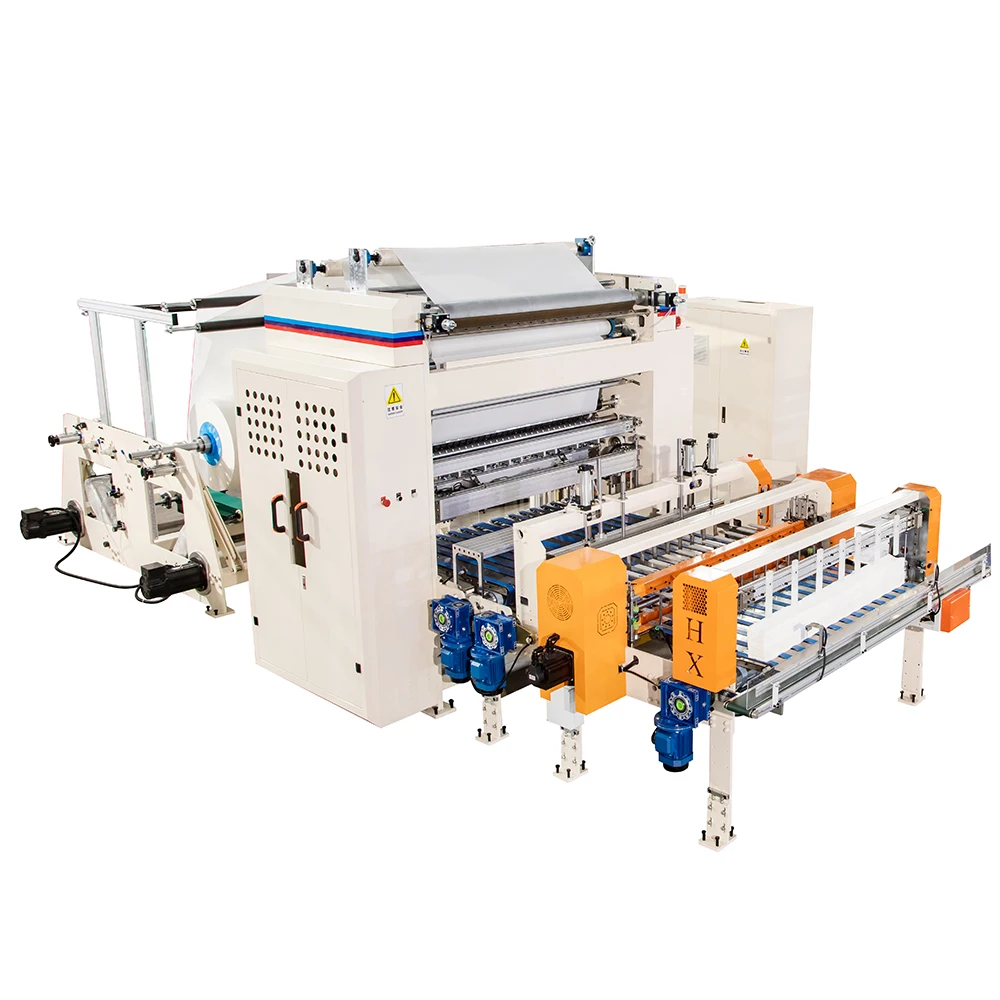

1. XY-GU-20A Automatic Facial Tissue Folding Machine

Name	Automatic transfer facial tissue folding machine
Speed	80-100m/min
Overall size(LWH)	850022502000mm
Weight of raw paper	(14-18)*2gsm
Power	35.3KW (380V,50HZ,3phase)

2. XY-GU-281 Automatic Facial Tissue Cutting Machine

High speed facial tissue cutting machine is an important component equipment of Box-drawing facial tissue production line , which can greatly improve the level of automation and production efficiency of the production line.
The machine is strong, beautifully designed, cut paper precise movements, rolls flat section, and smooth.

3. XY-GU-388 Automatic carton box facial tissue packing machine

Machine Model	XY-GU-388
Design Product Capacity	50-70 boxes/minute
Packing material	300-450g/㎡ carton box
Packing size	(110-240)mm X (60-160)mm X (20-120)mm
Air supply	0.5-0.8mpa
Power	15 Kw 380v 50Hz
Overall size	3600x1600x1700mm
Weight	2000 kg

Features:

1. Rejection automatically if no products, nonstandard height or lack of leaflet.

2. Stop automatically if incorrect position of products into carton.

3. Stop automatically if no cartons or out of leaflets continuous.

4. Easy to change to different products.

5. Protecting automatically for overloading.

6. Automatically displaying device for speed and finished products counting.

4. XY-TN-269 Full-automatic box facial tissue heat shrink packing machine
The equipment is operated by using PLC program control, big screen true color human-computer interface. The precise servo control feed length, electromechanical integration control and other international advanced technology con automatically detect each key action, has good fault information prompt system, make the whole production line achieving the best working state.

Model	4525L cutting and sealing machine	4525 temperature shrink machine
Power source	220V 50Hz/60Hz	380V 50/60Hz
Rated Power	1.55KW	12 KW
Sealing Size	L800W400H200MM	450220120mm
Packing speed	20-40 Packs /min	0-10m/min
Packaging Size	L450 x W400 x H120 MM	450220120mm
Machine size	L1500×W750×H1360mm	L1600×W700×H1300mm
Weight	300KG	150KG

Q: Are you trading company or manufacturer
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to
quantity.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
